Rejection Guard
Name mismatch, load over sanction, duplicate serials, missing photos — caught before the inspector sees the file.
Solar design software · Made in India
Design it with the sun. Close it on the roof.
Draw the roof, fill it, watch real shadows move across it and send a priced proposal on WhatsApp — in one sitting, from homes to factories.
7 days free · unlimited proposals up to 25 kW · everything in Pro · no card needed
Surya Power EPC
Mehta ji, your 10.98 kW solar proposal — your roof in 3D, ₹78,000 subsidy, payback in 3.1 years. ☀️
pitchsun.com/p/… 4:58 pm ✓✓This is the actual PitchSun designer. The 3D view is live — drag it, zoom, or press Play the day.
Try it yourself
Turn a real design. Play the sun.

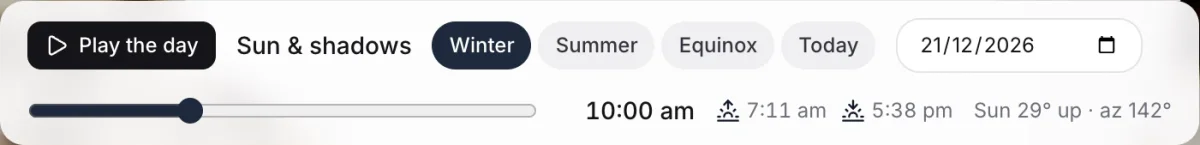

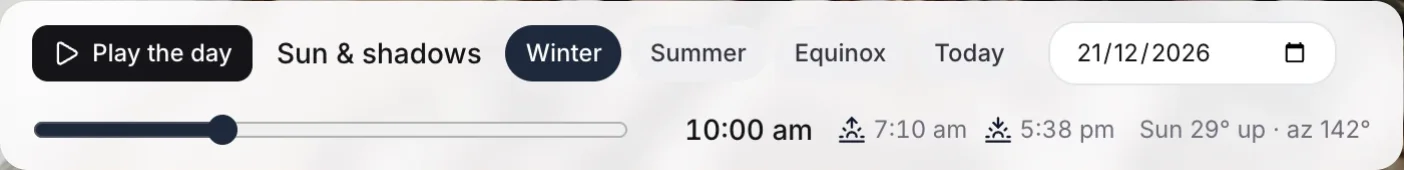

This is PitchSun's actual 3D engine — the same view your customer opens from their proposal. Drag to turn, scroll to zoom, press Play the day, switch to summer.
Click to turn, zoom and play the sun
⟲ Drag to turn⊕ Scroll or pinch to zoom▶ Play the day☀ Winter · Summer · Equinox▦ Top · Front · Under
Inside PitchSun
The real app. No mock-ups.
Every screen below is PitchSun as your team will use it — the Graphite workspace theme, real designs, real numbers.

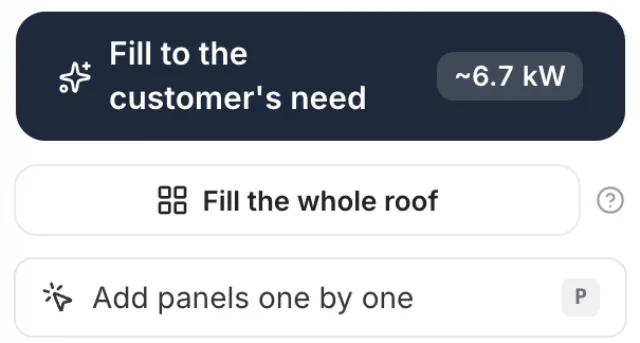

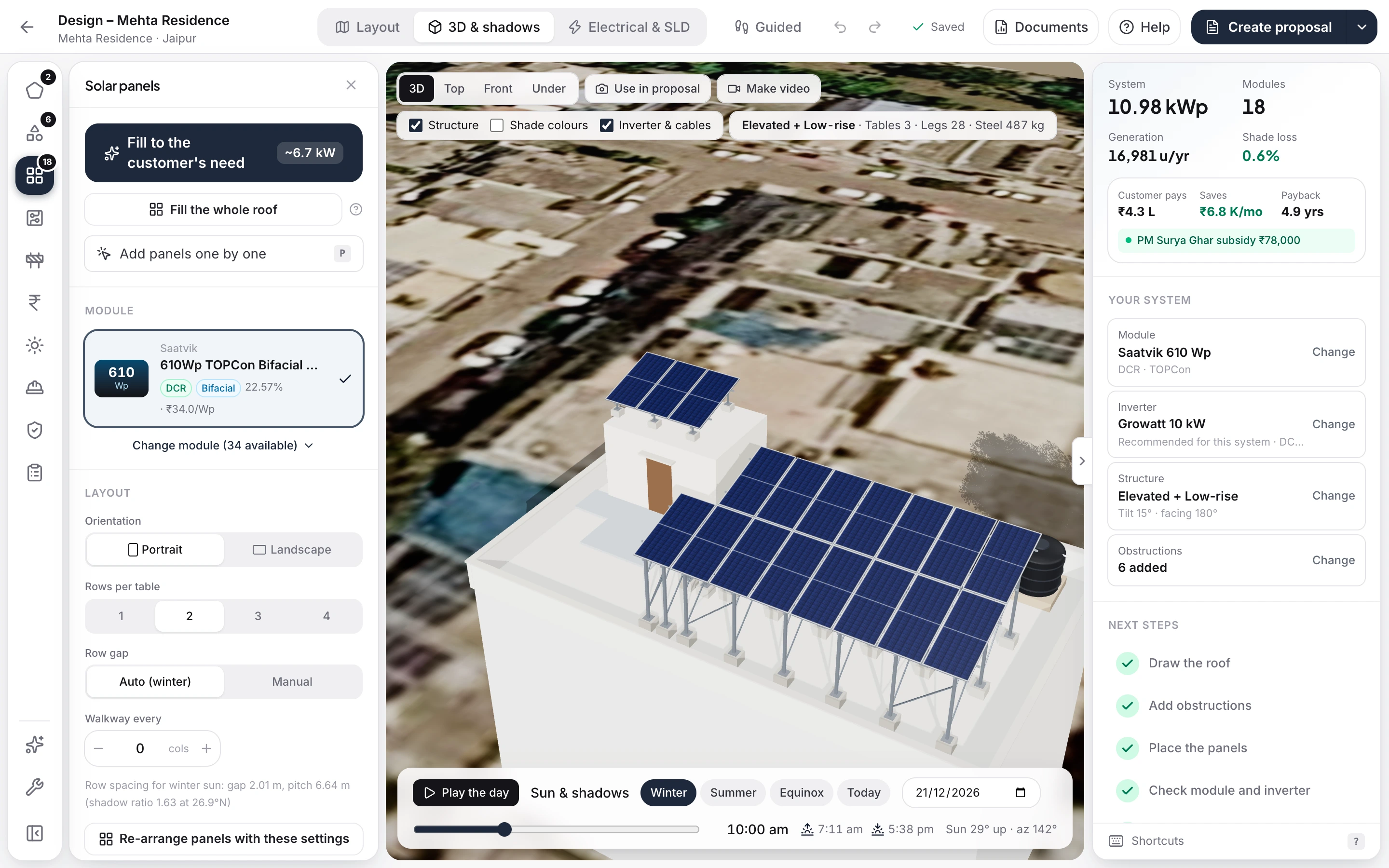

01 / 07 · Roof layout
Draw the roof. Fill it to the bill.

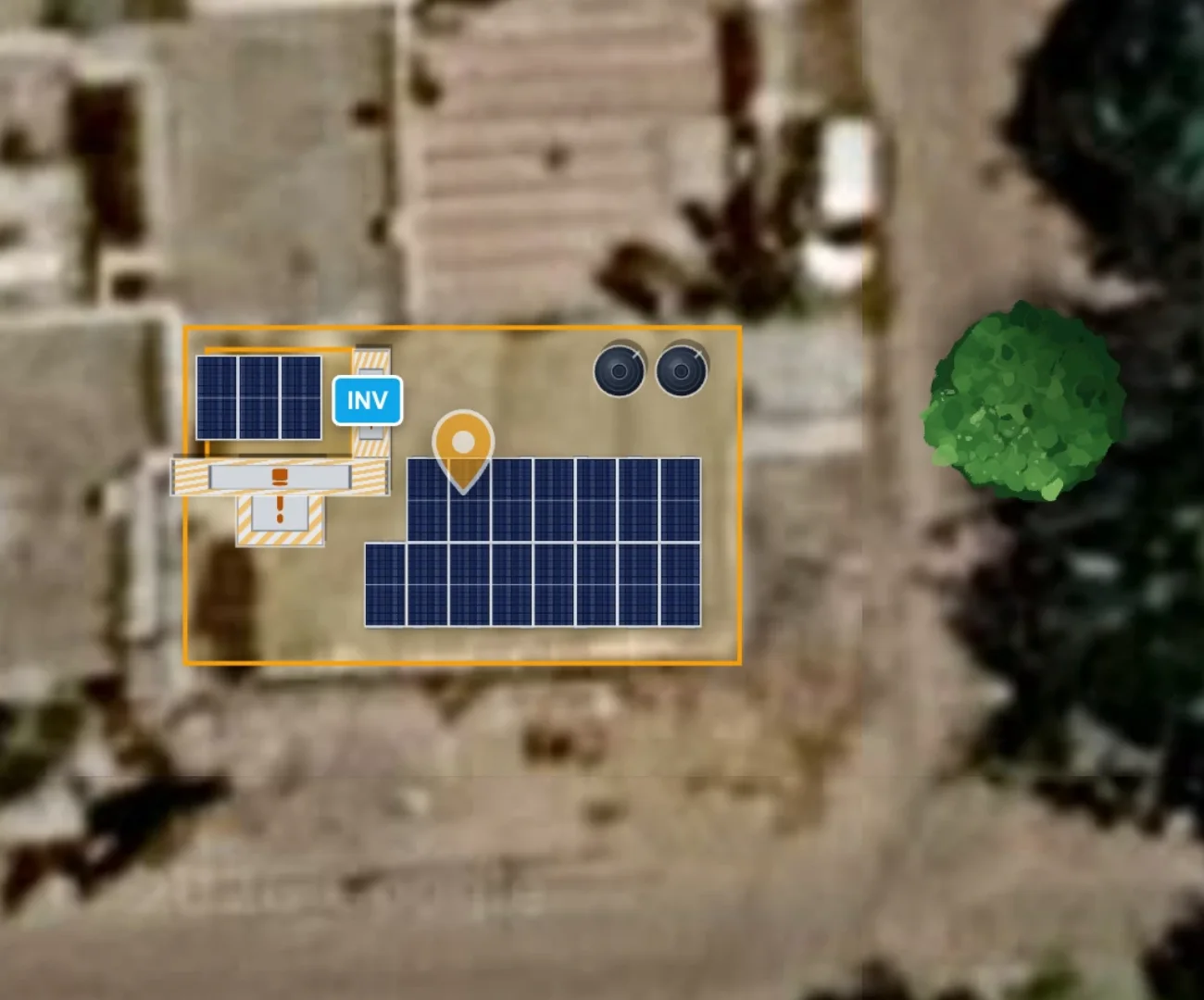

Trace the terrace on satellite, drop the mumty, tanks and trees, then let PitchSun fill it to what the family actually uses.
- Sized from the electricity bill, not the roof
- Winter row spacing worked out for the latitude
- Price, saving and payback move as you move panels
One tap · 18 panels placed

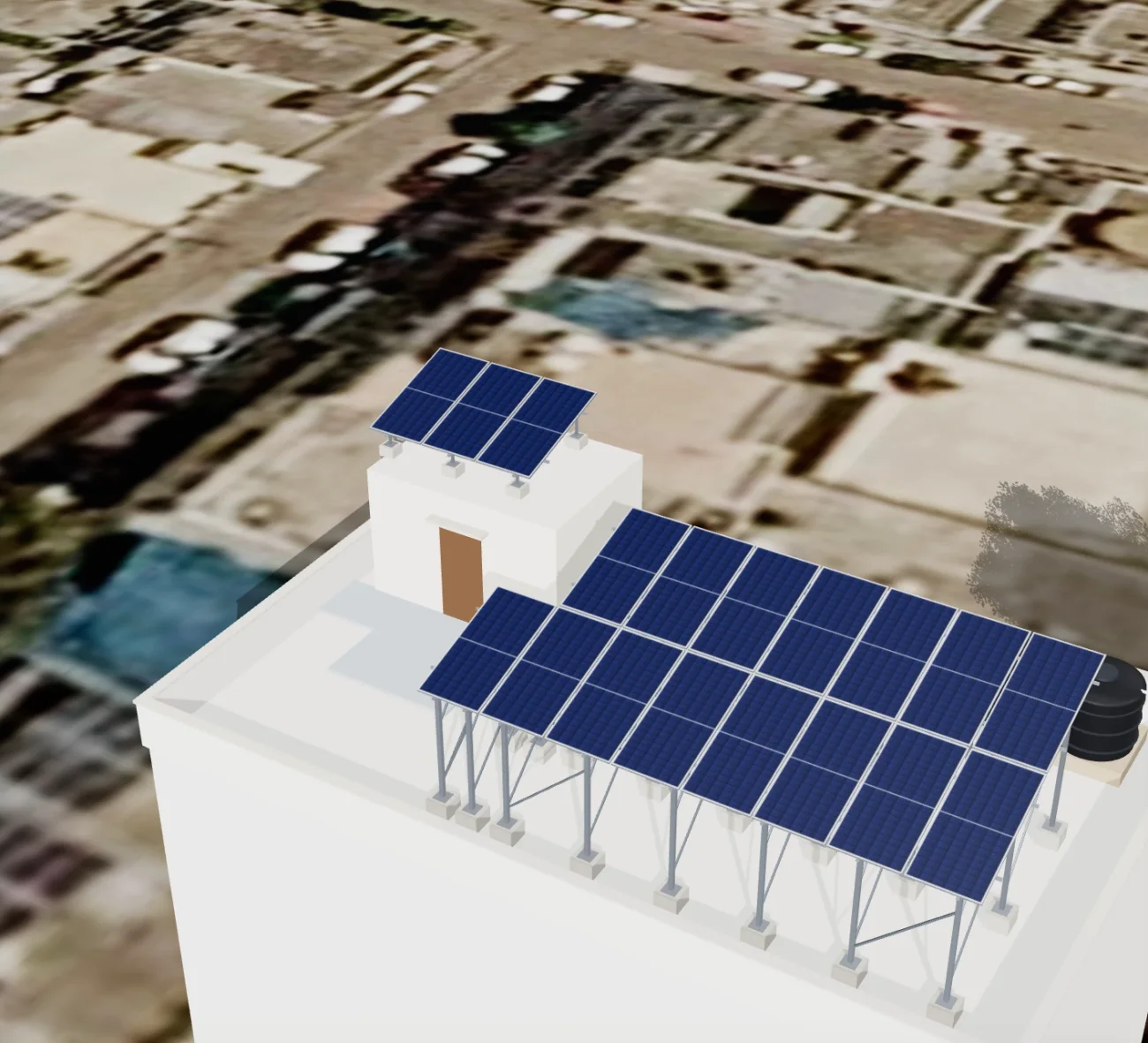

02 / 07 · 3D & shadows
Show the roof before it exists.
Every structure is built in 3D — the elevated frame over the terrace, panels on the mumty, the inverter on its wall — with the real sun moving over it.
- Tables, legs and steel counted per structure
- Play the day in winter, summer or equinox
- Drop the view straight into the proposal

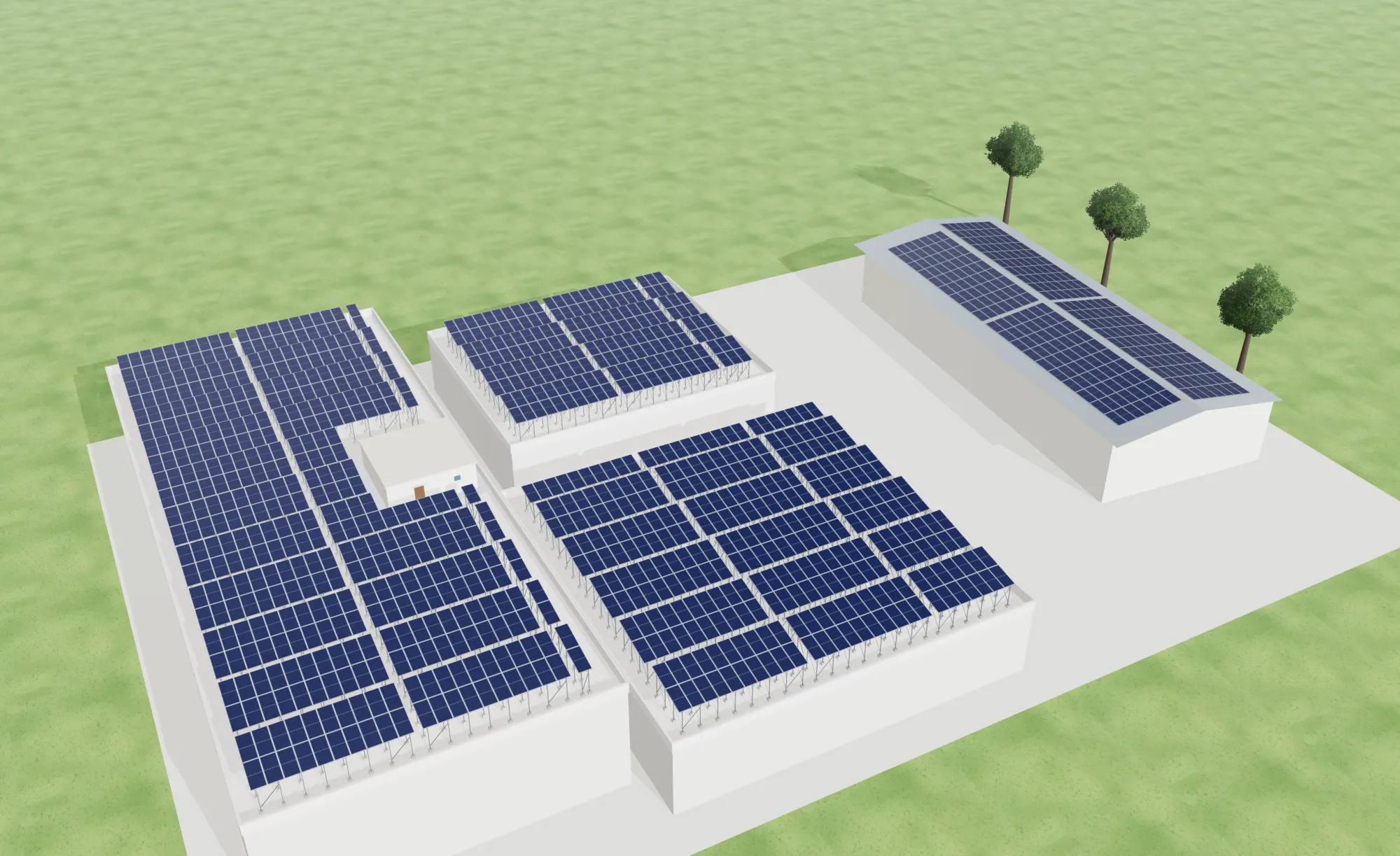

03 / 07 · Factories
A whole factory on one screen.

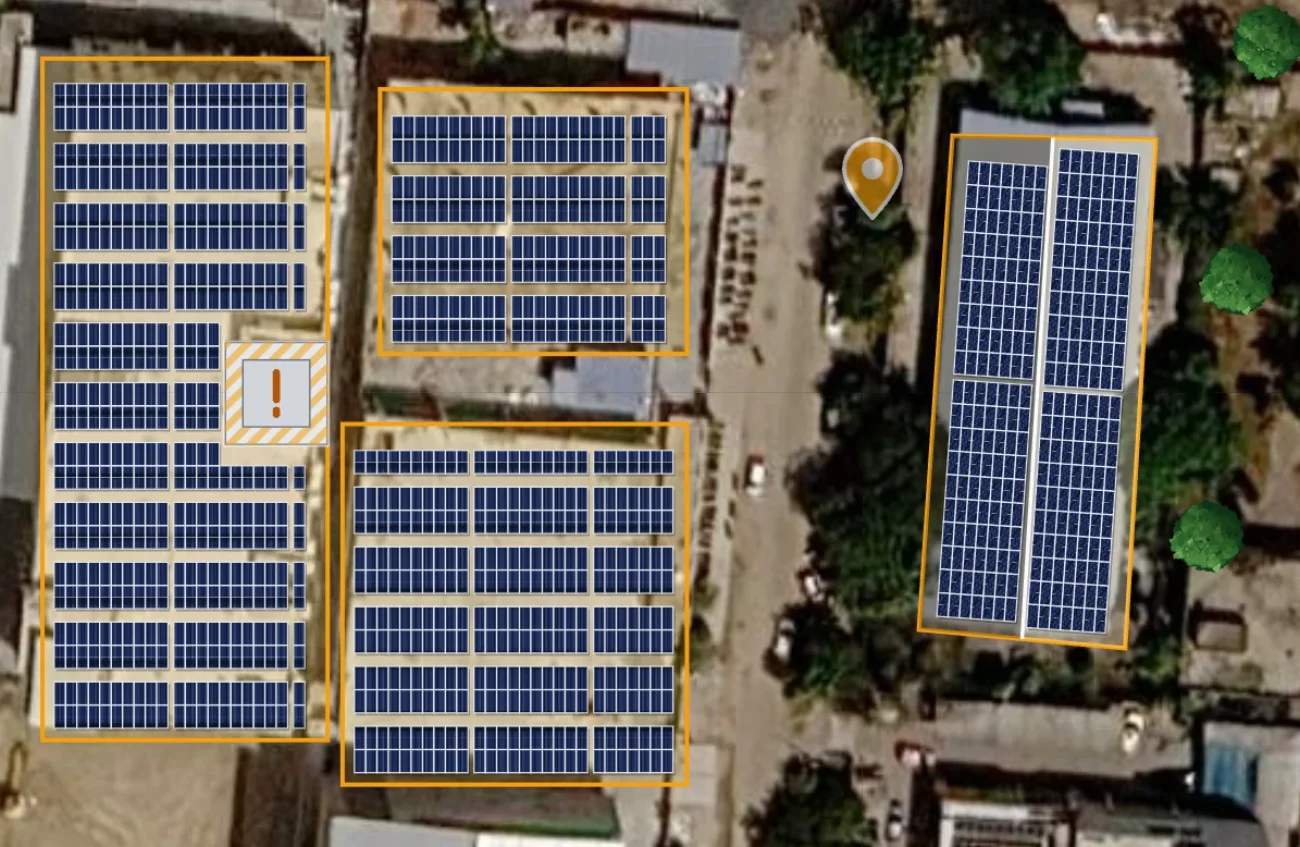

Aravali Precision Castings: a metal-sheet machine shop and two RCC blocks, traced from the satellite — one design, one bill of materials, one proposal.
- Gable shed filled on both faces, 1 m clear at the edges
- Low-rise rows on RCC, walkways every 10 columns

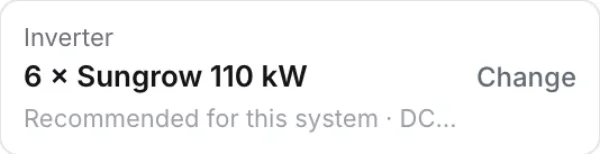

- Six 110 kW inverters planned for you

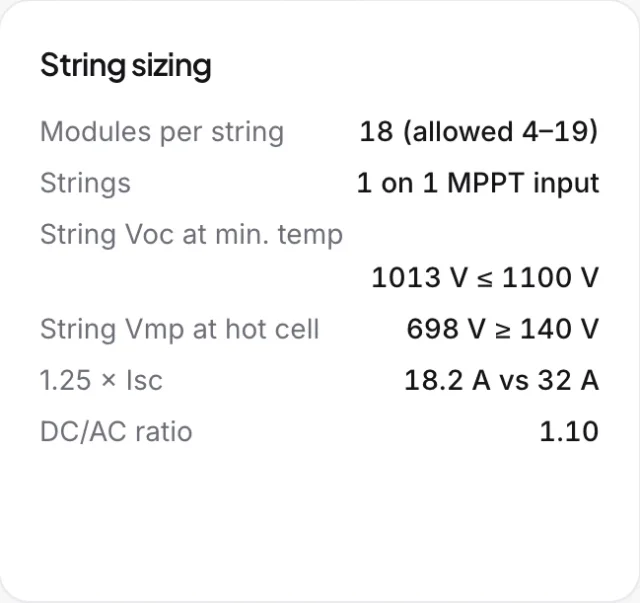

04 / 07 · Strings & SLD
The engineering, done before they ask.

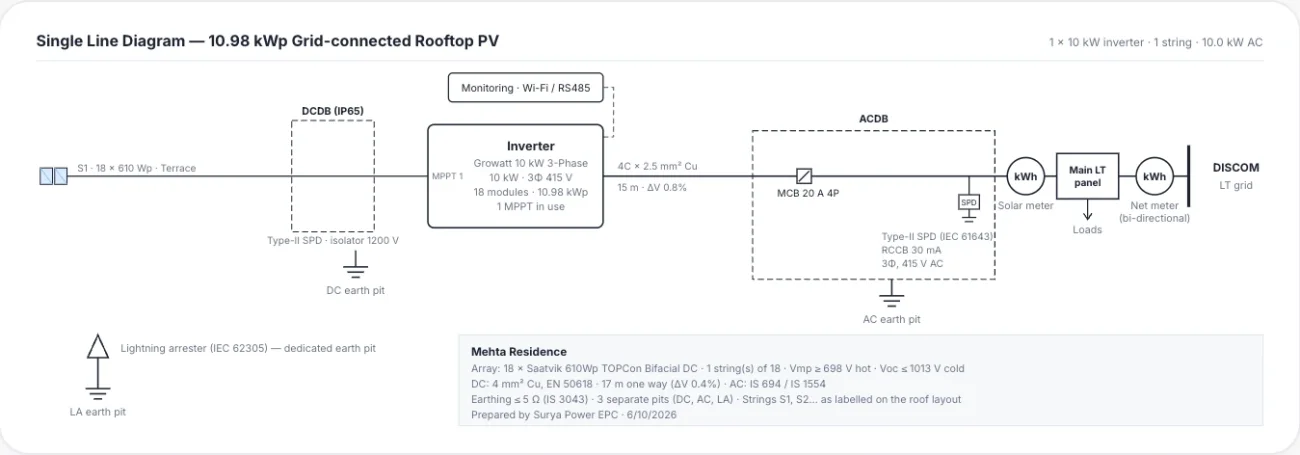

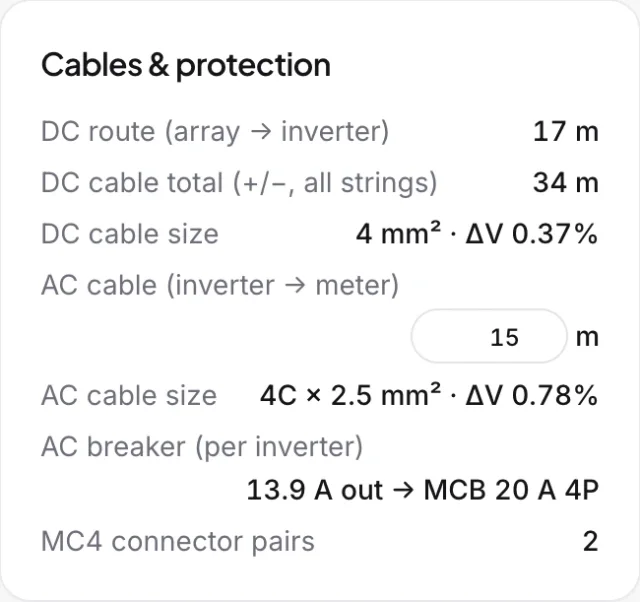

Strings, cables and protection are sized the moment the panels go down, and the single line diagram draws itself.
- Voc checked at the coldest morning — 1,013 V ≤ 1,100 V
- DC and AC cables sized with voltage drop
- IEC-symbol SLD, earthing and lightning arrester

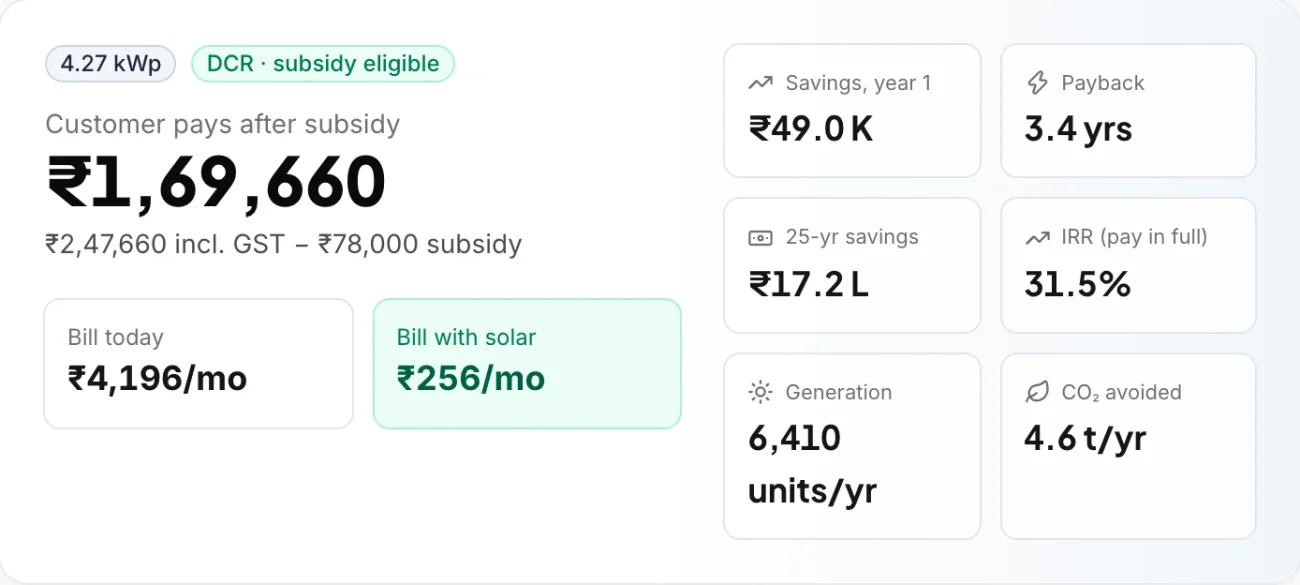

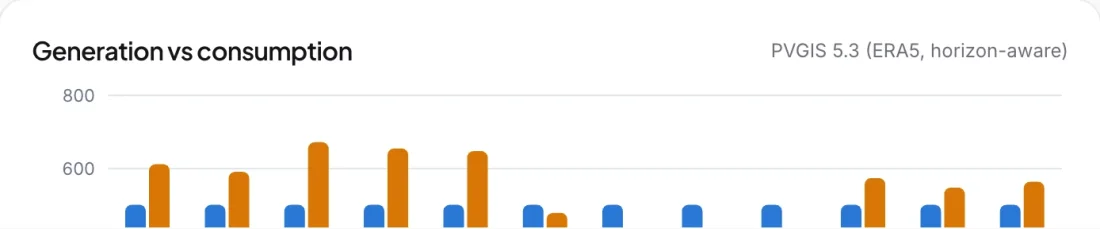

05 / 07 · Quote
The number they'll say yes to.
Type the bill, pick the DISCOM — the quote fills in with your prices, the PM Surya Ghar subsidy and GST at 70:30, live.
- DISCOM slabs reversed to find units used
- ₹78,000 subsidy applied where eligible

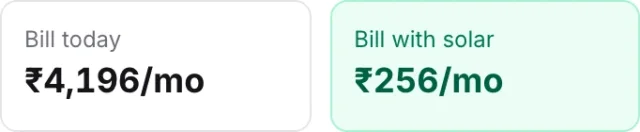

- Bill today against bill with solar, side by side

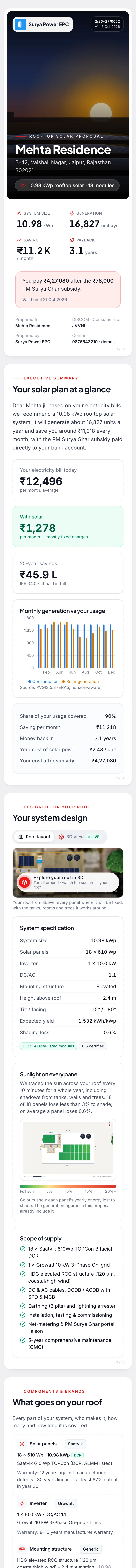

06 / 07 · Proposal
Their roof, on their phone.

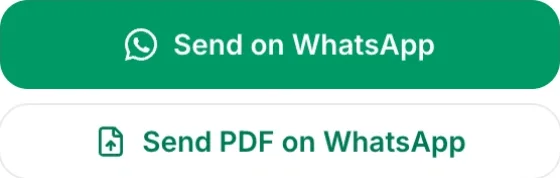

One tap sends the proposal on WhatsApp, as a link or a PDF. The family scrolls their own roof in 3D, the subsidy and the payback — in their own language.
- English, Hindi, Marathi, Gujarati, Tamil, Telugu, Kannada or Bengali
- They turn the 3D roof themselves

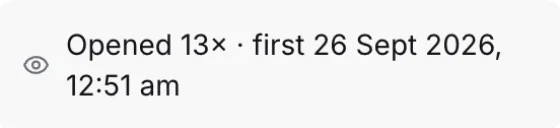

- You see every time it's opened
Surya Power EPC
Mehta ji, your 10.98 kW solar proposal — your roof in 3D, ₹78,000 subsidy. ☀️
pitchsun.com/p/…4:58 pm ✓✓
07 / 07 · Pipeline
Nothing slips after the yes.

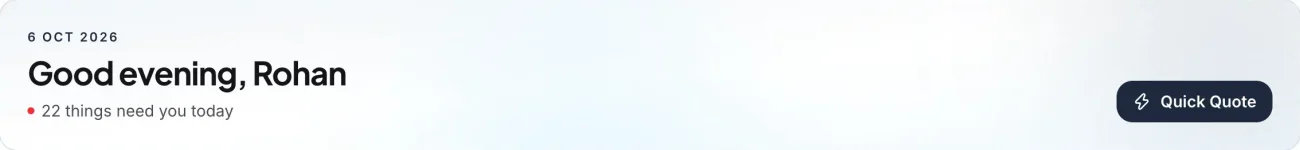

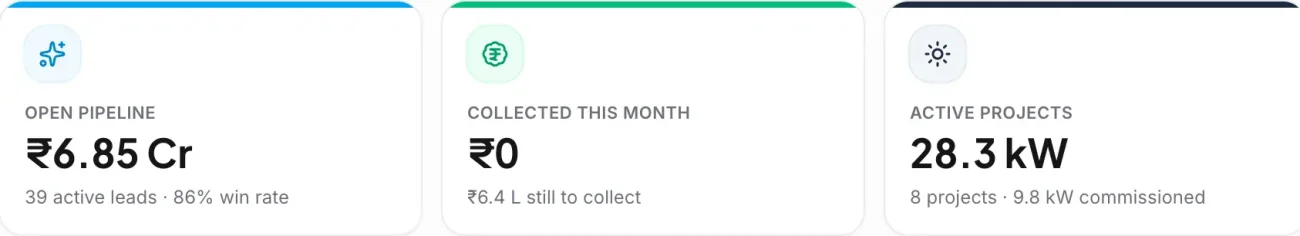

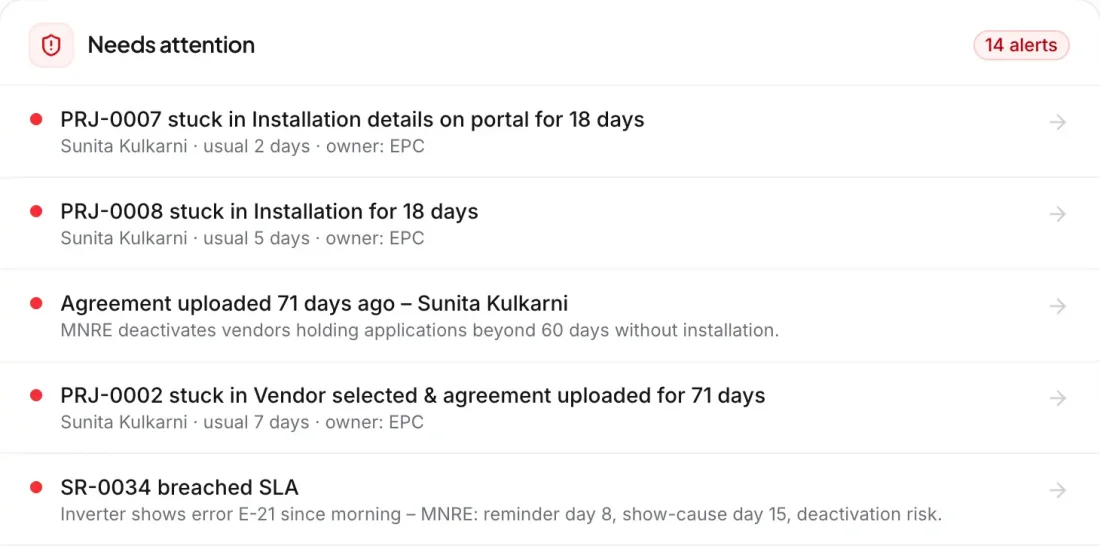

The dashboard opens on what needs you today — projects stuck past their usual time, money still to collect, service calls near their SLA.
- Stuck projects flagged against your own SLA
- PM Surya Ghar portal steps and the 60-day rule tracked
- Pipeline, collections and kW in one glance
14 alerts, sorted
Solutions
One designer for every roof you quote.
A 6 kW home in the morning, a textile unit after lunch and a megawatt factory before the day ends — the same tool, the same five-step flow.

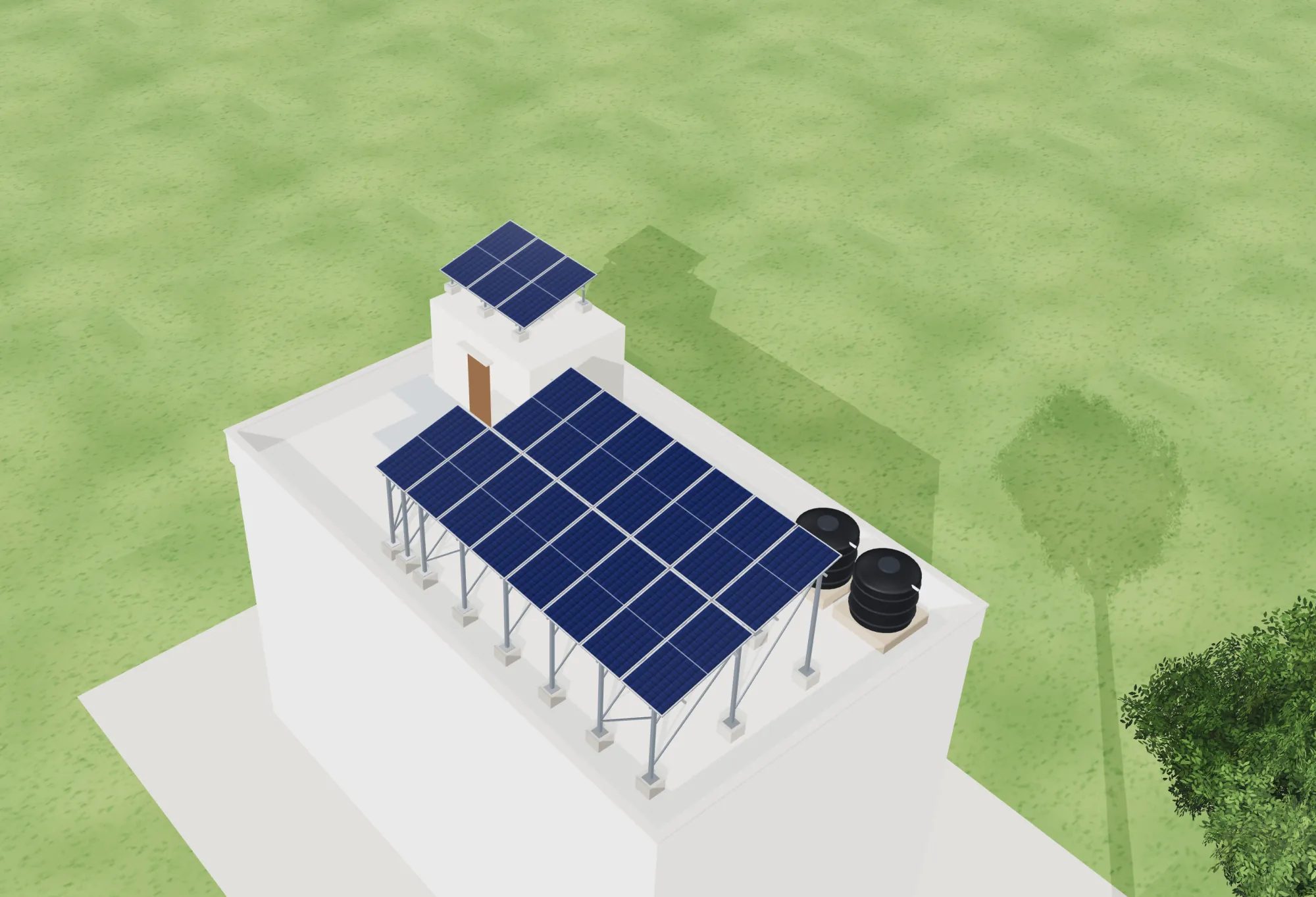

Residential · PM Surya Ghar
The rooftop next door.

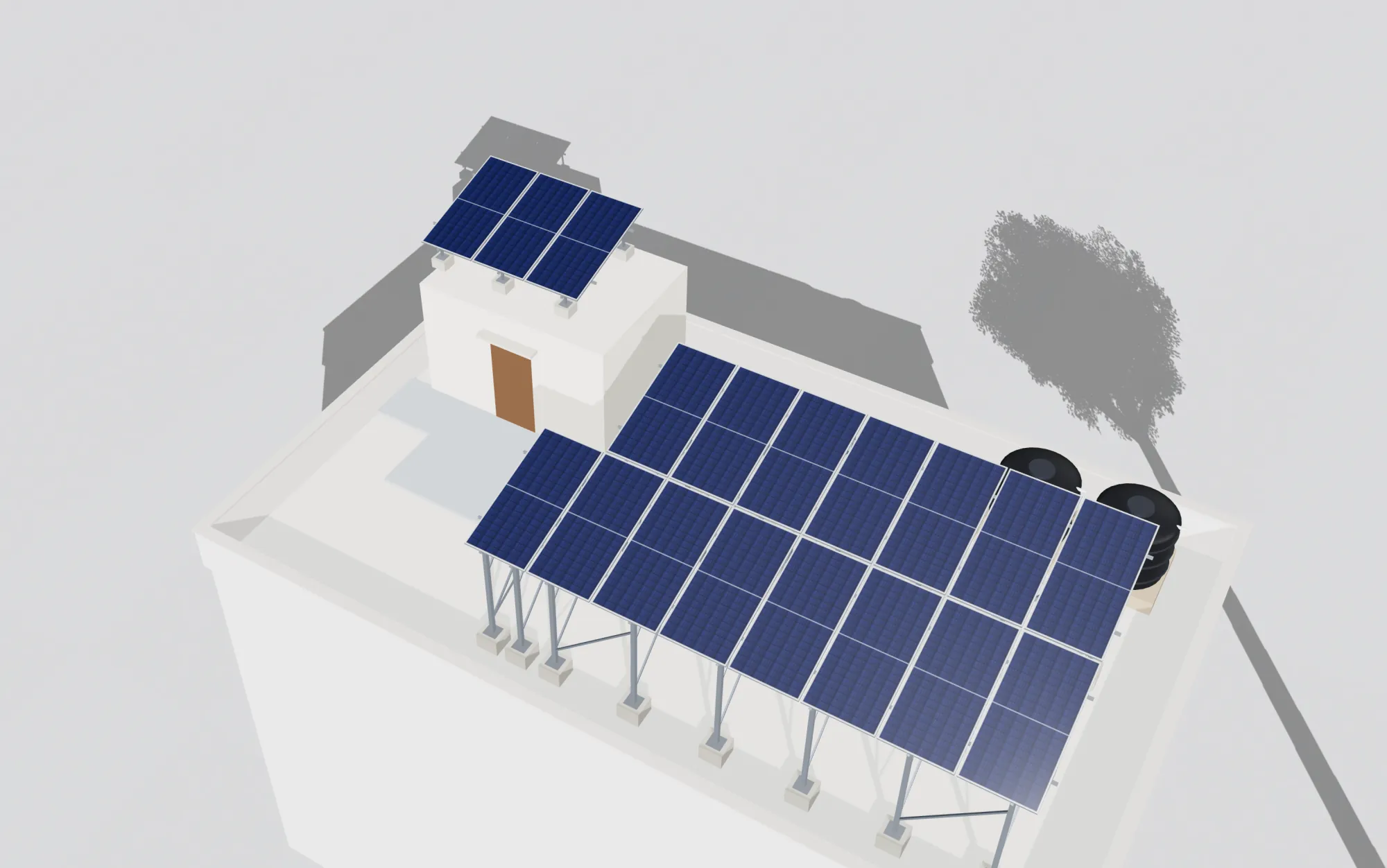

An elevated frame so the family keeps the terrace, more panels on top of the mumty, the inverter on its wall — and the subsidy worked out before you leave.
Elevated 2.4 mPanels on the mumtySubsidy ₹78,000
System10.98 kWp
Modules18
Units / yr16,827
Payback3.1 yrs

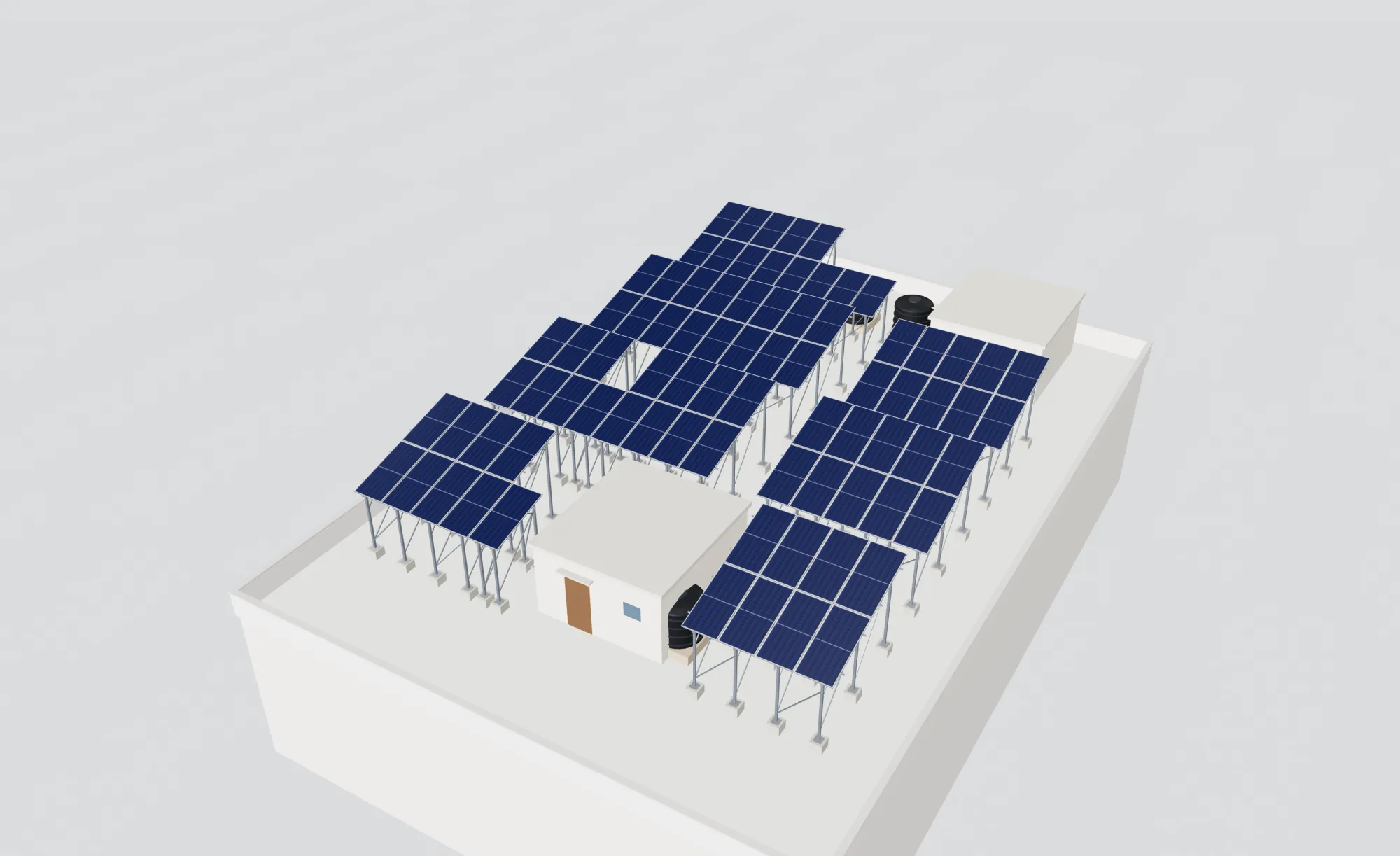

Commercial · LT connection
Shops, schools, small units.
Staircase rooms and three water tanks dodged automatically, winter row spacing on an elevated frame, strings sized for a 50 kW inverter.
Elevated 2.5 m11 tables · 113 legsAuto SLD
System49.41 kWp
Modules81
Units / yr74,134
Shade loss0.6%

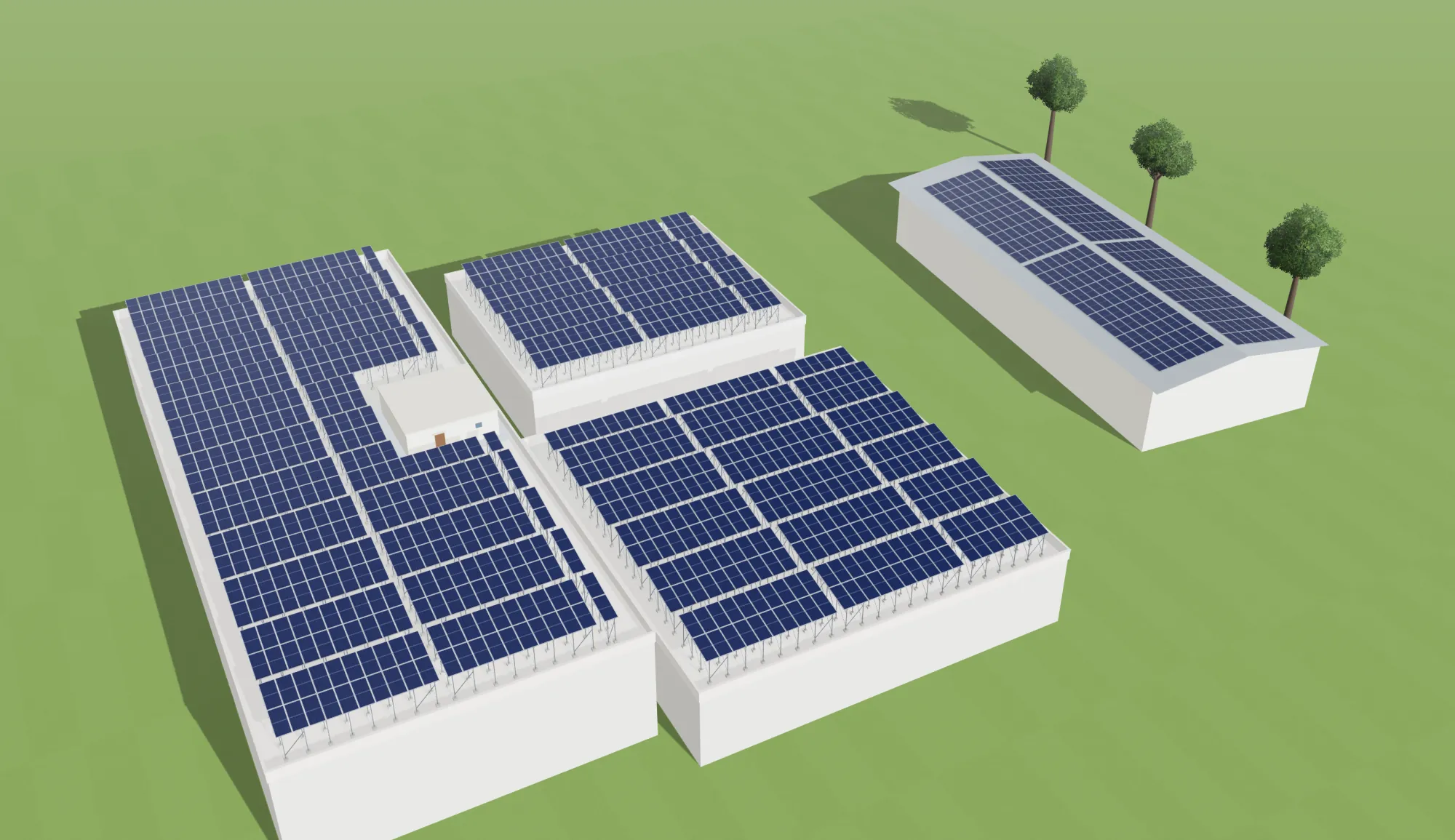

Industrial · HT connection
Factories and open land.
A metal-sheet machine shop filled on both faces and low-rise rows on two RCC blocks — one design, six inverters, one bill of materials.
Metal-sheet gableLow-rise RCCStair-room clearance

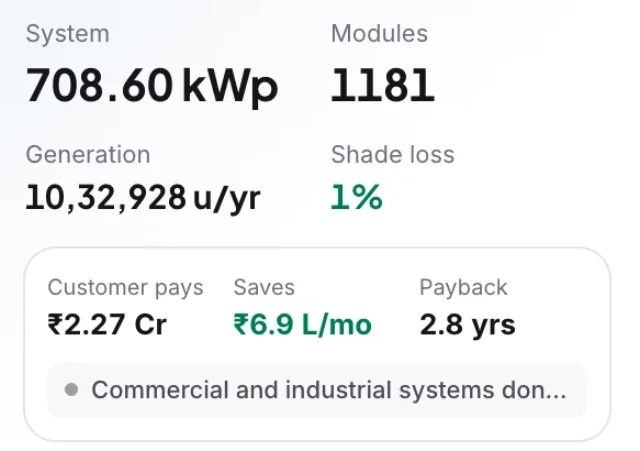

System708.6 kWp
Modules1,181
Units / yr10.3 L
Payback2.7 yrs
3D views
Show them the roof before it exists.
Every image here is a real PitchSun design, rendered by the same 3D engine your customer opens from their proposal link.

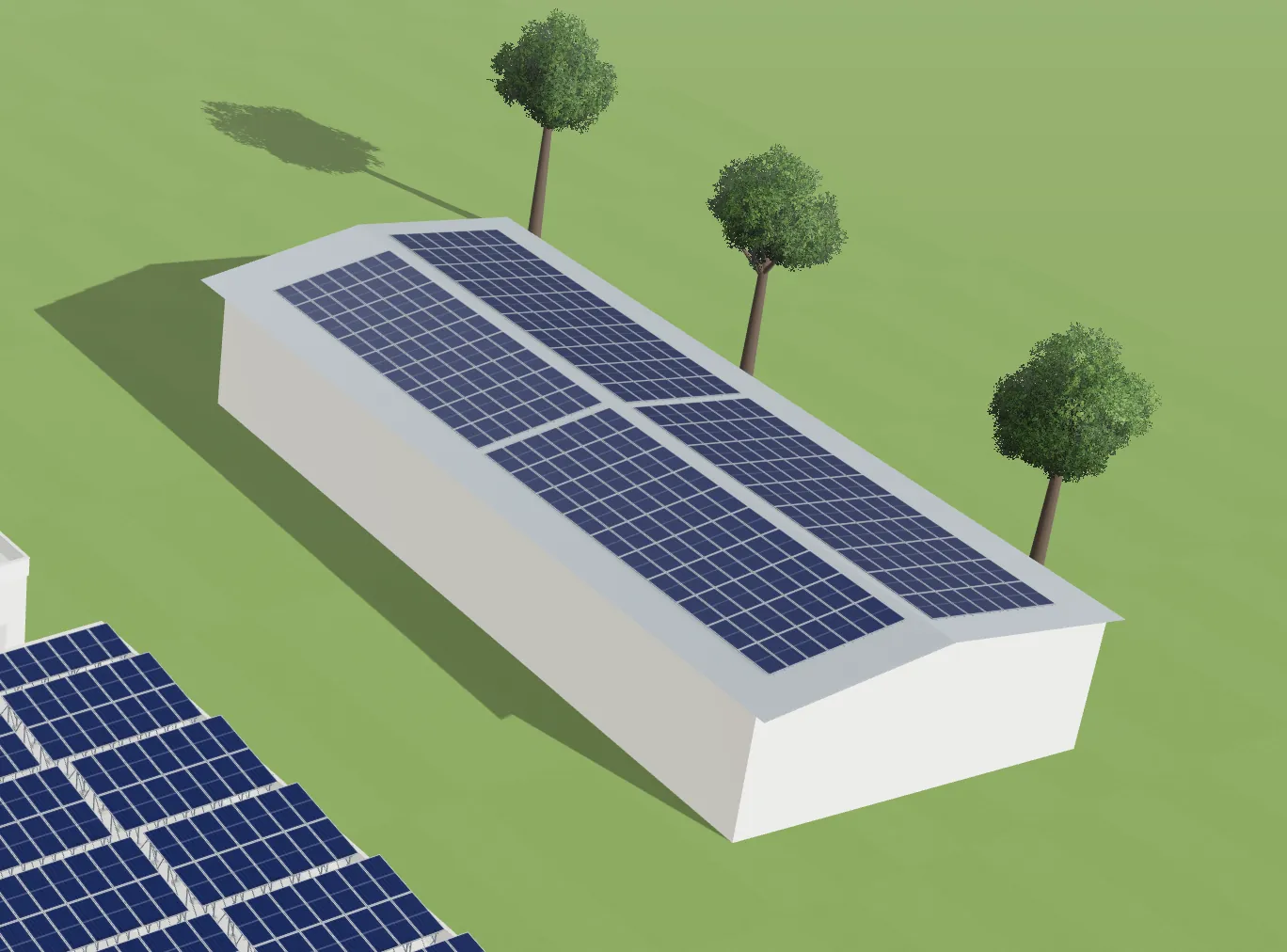

Metal-sheet machine shopBoth faces filled, 1 m clear at the edges
Industrial

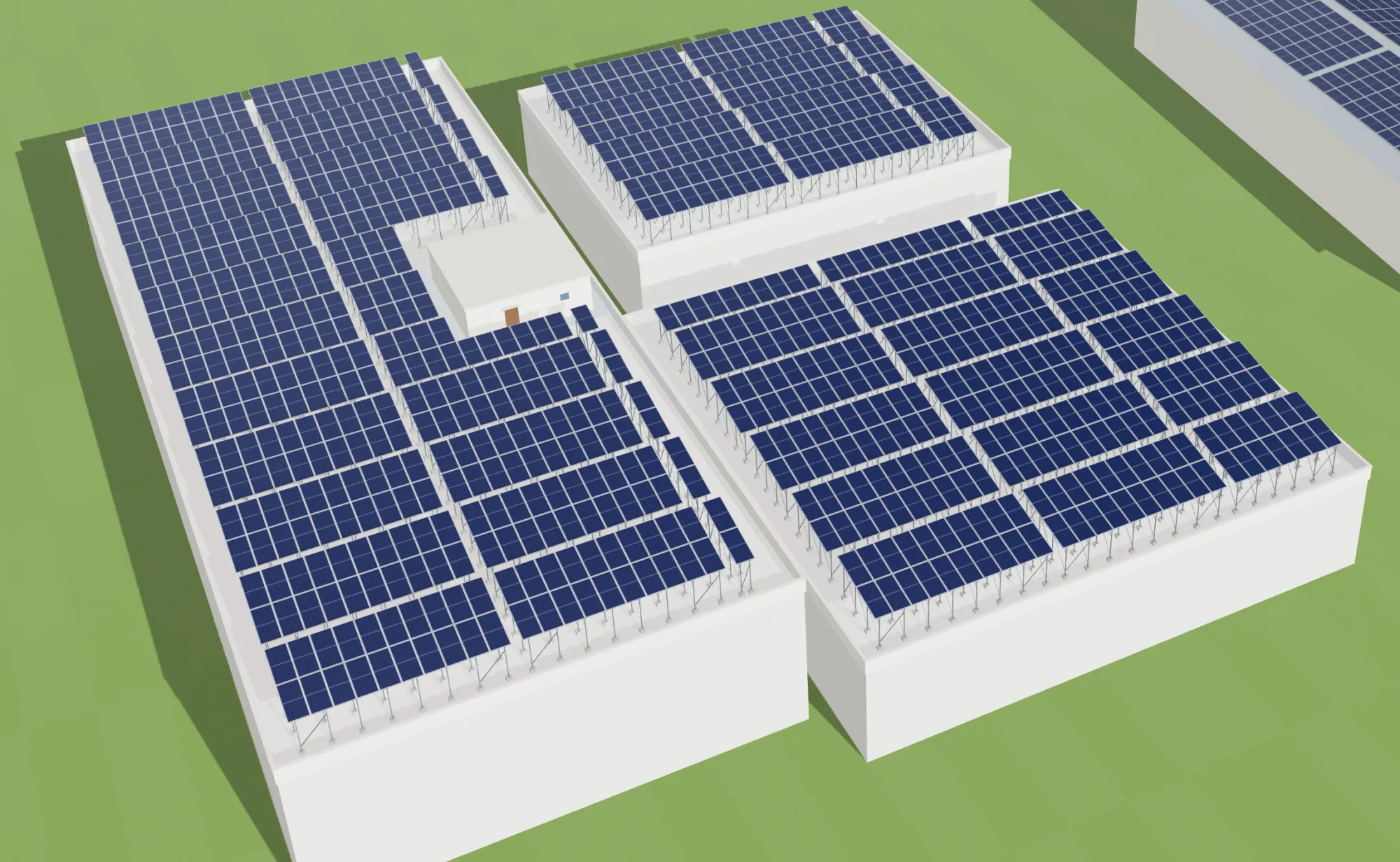

RCC blocks, low-riseRows with walkways, stair room kept clear
IndustrialElevated over obstructions2.5 m frame clears tanks and stair rooms
49.41 kWpTerrace + mumtyElevated frame, panels on the stair room, tanks clear
10.98 kWpThe whole siteThree structures, one design, one proposal
708.6 kWp
Commercial & industrial
Built for factories, not just homes.
C&I buyers ask harder questions. PitchSun answers them in the design — with the tariff, the money and the engineering behind every number.
Inverters planned for you
Steel & legs counted
01
Sheds, gables and ground mount
Metal-sheet roofs filled on both faces, canopy structures over big RCC roofs, ground arrays beside them — in the same design.
02
45 C&I tariffs, ToD included
Industrial and commercial tariffs across 13 states, and C&I studies that price time-of-day rates hour by hour.
03
Up to 20 inverters, planned for you
Strings and inverters laid out together, with LT panel, DCDB per inverter, earthing and lightning arrestors in the BOM.
04
CAPEX vs RESCO, IRR to LCOE
Hourly load from bills or meter data, battery sizing, and IRR, NPV, LCOE with P50 / P90 for the CFO.
0DISCOM tariffs built in
0Structure types in 3D
0Surya Ghar stages tracked
0Inverters per design
After the sale
The design is where it starts.
Pipeline, paperwork, payments and five years of maintenance — in the same app, from the same customer record.
Surya Ghar pipeline
13 stages with SLA clocks, who has the file — you, the DISCOM or MNRE — and how much subsidy is still to come.
Money by payer
Customer, bank loan and subsidy tracked separately, with GST invoices and WhatsApp payment reminders.
Leads that arrive on their own
IndiaMART, Meta lead ads, JustDial and your website form — duplicates caught, assigned by pincode.
Field app, offline
Site survey, GPS-stamped photos, crew job cards and customer e-signature — syncs when the signal returns.
Five years of service
Free maintenance visits scheduled at commissioning, complaints timed against MNRE's deadlines.
Savings calculator
The numbers your customer sees.
Move the bill. Size, subsidy, monthly saving and payback update the way they do in a PitchSun proposal.
Recommended system——
System cost—
Govt. subsidy—
Customer pays—
Monthly saving—
Payback—
CO₂ avoided / yr—
Net savings over 25 years—
Pricing
Pay for the kW you design.
Unlimited users on every plan · Taxes, if any, shown at checkoutCompare every feature →
Questions installers ask us.
Does it handle commercial and industrial projects?
Yes. Metal-sheet and gable roofs, ground-mount arrays and RCC blocks in one design, up to 20 inverters, C&I tariffs with time-of-day rates, and CAPEX vs RESCO financials with IRR, NPV and LCOE.
Can my customer see the 3D design?
Yes. The proposal link has a 3D view of their own roof — they can turn it around and play the sun through the day on their phone.
Can I design from my phone?
Yes. The designer, quick quote and proposal all work on a phone. A laptop gives you more room for large factory roofs.
How is the subsidy calculated?
PitchSun applies the PM Surya Ghar central financial assistance — ₹30,000 per kW for the first 2 kW and ₹18,000 for the third kW, capped at ₹78,000 — with higher amounts for special-category states and UTs.
Can I use my own panel and inverter prices?
Yes. Build your price list from the equipment library; every quote uses your products and prices, with the 70:30 GST split applied.
Before the sun sets
Send today's proposal today.
Share a customer's address on WhatsApp — home or factory. We'll design it live with you, and you keep the proposal.
